OneView Edge brings AI-powered inspection to the factory floor.

Built for real-time, inline operation, OneView Edge devices run customizable AI-powered inspection algorithms that inspect and monitor your products and processes inline in real-time, and instantly share results with PLCs and operator HMIs. Fully configurable to your process, these devices integrate seamlessly with OneView Cloud—linking local inspection to centralized monitoring, management, and analysis tools.

[1]

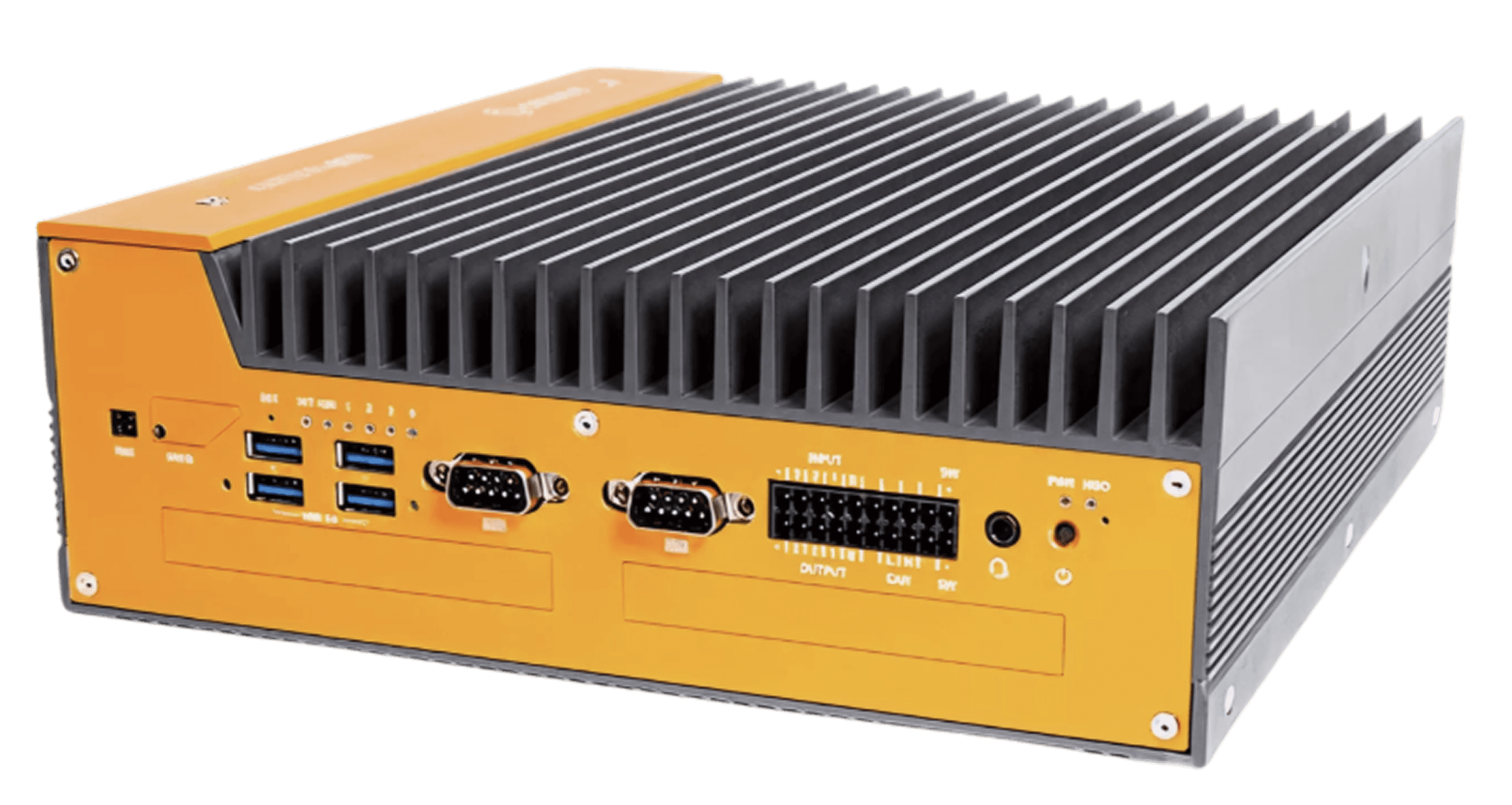

Pro 802

A high-performance unit built for handling compute-intensive tasks and integrating seamlessly into existing production lines, giving ultimate flexibility to solve complex AI-powered inspection tasks.

[1]

Pro 802

A high-performance unit built for handling compute-intensive tasks and integrating seamlessly into existing production lines, giving ultimate flexibility to solve complex AI-powered inspection tasks.

[2]

Core 2302

A compact, cabinet-free option that supports up to two cameras. It’s ideal for straightforward applications where space is tight but accuracy is critical

[2]

Core 2302

A compact, cabinet-free option that supports up to two cameras. It’s ideal for straightforward applications where space is tight but accuracy is critical

Pro 802

Real-Time, Multi-Camera AI Inspections

Execute advanced vision AI models directly on the edge for inline quality control — supporting up to four connected cameras.

Powerful. Scalable. Future-Ready.

Run multiple vision AI models simultaneously to solve the most challenging inspection tasks; stack additional devices to increase compute power and camera capacity.

Seamless Industrial Integration

Easily integrate into electrical cabinets and connect with PLCs, HMIs, and automation systems to enable real-time operator feedback and automated decision-making.

Customizable Inspection Algorithms

Leverage pre-built inspection algorithms for various applications or create custom AI workflows for one-off applications.

OneView Ecosystem Advantage

Part of the OneView ecosystem for end-to-end vision management — from edge deployment to cloud-based insights and continuously improving AI tools.

Book a Demo

Download Product Flyer

Core 2302

Real-Time, Multi-Camera AI Inspections

Execute advanced vision AI models directly on the edge for inline quality control — supporting up to two connected cameras.

Compact All-In-One Design

Integrated edge computer and touchscreen HMI preloaded with OneView Edge, eliminating the need for separate control hardware.

Fast and Easy Integration

Simple to deploy and integrate, no electrical cabinet required, optional waterproof enclosure available for harsh environments.

Customizable Inspection Algorithms

Leverage pre-built inspection algorithms for various applications or create custom AI workflows for one-off applications.

OneView Ecosystem Advantage

Part of the OneView ecosystem for end-to-end vision management — from edge deployment to cloud-based insights and continuously improving AI tools.

Book a Demo

Download Product Flyer

Compare Plans

Pro 802

Book a Demo

Core 2302

Book a Demo

Pro 802

Book a Demo

Core 2302

Book a Demo

Pro 802

Core 2302

Pro 802

Core 2302

Connection Interfaces

Supports USB and GigE (PoE) connections for up to 4 cameras

Supports USB and GigE (PoE) connections for up to 2 cameras

Connection Interfaces

Supports USB and GigE (PoE) connections for up to 4 cameras

Supports USB and GigE (PoE) connections for up to 2 cameras

Supported Sensors

Supports FLIR and Optris thermal cameras, as well as GenICam-compliant color & monochrome models.

Supported Sensors

Supports FLIR and Optris thermal cameras, as well as GenICam-compliant color & monochrome models.

Supported Sensors

Supports FLIR and Optris thermal cameras, as well as GenICam-compliant color & monochrome models.

FPS & Resolution

Supports high-resolution images; FPS & performance depend on camera model & workload

FPS & Resolution

Supports high-resolution images; FPS & performance depend on camera model & workload

FPS & Resolution

Supports high-resolution images; FPS & performance depend on camera model & workload

Image Acquisition Modes

Triggered or continuous capture modes

Image Acquisition Modes

Triggered or continuous capture modes

Image Acquisition Modes

Triggered or continuous capture modes

AI Models

Wide range of AI models in OneView Cloud (classification, object detection, segmentation)

AI Models

Wide range of AI models in OneView Cloud (classification, object detection, segmentation)

AI Models

Wide range of AI models in OneView Cloud (classification, object detection, segmentation)

I/O Interfaces

OPC UA, Modbus, Ethernet/IP for bi-directional communication

I/O Interfaces

OPC UA, Modbus, Ethernet/IP for bi-directional communication

I/O Interfaces

OPC UA, Modbus, Ethernet/IP for bi-directional communication

Algorithms

Pre-built algorithms or custom solutions for unique inspection applications

Algorithms

Pre-built algorithms or custom solutions for unique inspection applications

Algorithms

Pre-built algorithms or custom solutions for unique inspection applications

Device Specification

Intel Core i7-13700TE, 16GB DDR4 RAM, 2× 512GB Hot-Swap SSD (RAID 1); I/O: 6× USB 3.2, 2× DisplayPort, 2× 2.5 GbE LAN, 4× PoE

Intel Core Ultra 7 165U, 16GB DDR5 RAM, 2× 512GB SSD (RAID 1); I/O: 4× USB 3.0, HDMI/DP/VGA, 4× Gb LAN, 2× PoE

Device Specification

Intel Core i7-13700TE, 16GB DDR4 RAM, 2× 512GB Hot-Swap SSD (RAID 1); I/O: 6× USB 3.2, 2× DisplayPort, 2× 2.5 GbE LAN, 4× PoE

Intel Core Ultra 7 165U, 16GB DDR5 RAM, 2× 512GB SSD (RAID 1); I/O: 4× USB 3.0, HDMI/DP/VGA, 4× Gb LAN, 2× PoE

Device Specification

Intel Core i7-13700TE, 16GB DDR4 RAM, 2× 512GB Hot-Swap SSD (RAID 1); I/O: 6× USB 3.2, 2× DisplayPort, 2× 2.5 GbE LAN, 4× PoE

Intel Core Ultra 7 165U, 16GB DDR5 RAM, 2× 512GB SSD (RAID 1); I/O: 4× USB 3.0, HDMI/DP/VGA, 4× Gb LAN, 2× PoE

HMI Interfaces

19.5” TFT LCD capacitive touchscreen (optional)

Integrated 21.5” FHD capacitive touchscreen

HMI Interfaces

19.5” TFT LCD capacitive touchscreen (optional)

Integrated 21.5” FHD capacitive touchscreen

HMI Interfaces

19.5” TFT LCD capacitive touchscreen (optional)

Integrated 21.5” FHD capacitive touchscreen

Network Interfaces

Gigabit Ethernet (required for OneView Cloud)

Gigabit Ethernet + Wi-Fi (required for OneView Cloud)

Network Interfaces

Gigabit Ethernet (required for OneView Cloud)

Gigabit Ethernet + Wi-Fi (required for OneView Cloud)

Network Interfaces

Gigabit Ethernet (required for OneView Cloud)

Gigabit Ethernet + Wi-Fi (required for OneView Cloud)

Dimensions

240 x 82 x 267 mm

550 x 350.5 x 63.2 mm

Dimensions

240 x 82 x 267 mm

550 x 350.5 x 63.2 mm

Dimensions

240 x 82 x 267 mm

550 x 350.5 x 63.2 mm

Power Supply

48V DC, 20.8A (100–240 V AC supply included)

9–48V DC (100–240 V AC supply included)

Power Supply

48V DC, 20.8A (100–240 V AC supply included)

9–48V DC (100–240 V AC supply included)

Power Supply

48V DC, 20.8A (100–240 V AC supply included)

9–48V DC (100–240 V AC supply included)

Operating Temperature

–20°C to 75°C

0°C to 60°C

Operating Temperature

–20°C to 75°C

0°C to 60°C

Operating Temperature

–20°C to 75°C

0°C to 60°C

Safety

UL, IEC, EN 62368-1

Safety

UL, IEC, EN 62368-1

Safety

UL, IEC, EN 62368-1

Mounting Options

Wall mount included; DIN rail mount (optional)

VESA & panel mount supported (IP 65 Compliant)

Mounting Options

Wall mount included; DIN rail mount (optional)

VESA & panel mount supported (IP 65 Compliant)

Mounting Options

Wall mount included; DIN rail mount (optional)

VESA & panel mount supported (IP 65 Compliant)

Software

Preloaded with OneView Edge, connects seamlessly to OneView Cloud

Software

Preloaded with OneView Edge, connects seamlessly to OneView Cloud

Software

Preloaded with OneView Edge, connects seamlessly to OneView Cloud

Warranty

5 years

2 years

Warranty

5 years

2 years

Warranty

5 years

2 years

Camera Interfaces

PoE, USB

Camera Interfaces

PoE, USB
